What are the steps and advantages of the lost wax process?

The Lost Wax Method, also known as Investment Casting, is a highly precise metal casting technique. It enables the production of metal parts with complex geometries and high surface quality, making it widely used in high-end manufacturing sectors such as aerospace, medical devices, automotive manufacturing, and jewelry. This article will delve into the detailed process of the lost wax process and its advantages.

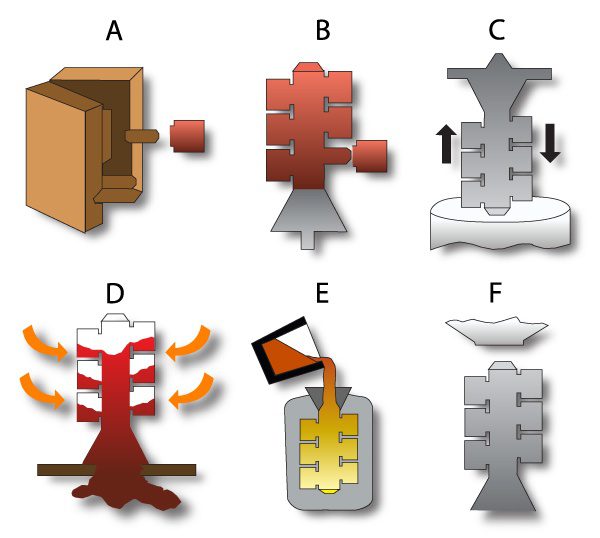

Process Steps

Pattern Making:
Initially, a master pattern is created based on the design drawings, typically using wood, plastic, or metal. The shape of the master pattern is the negative of the final cast part.

Wax Pattern Making:
Molten wax is injected into the master pattern to create a wax model. Multiple wax patterns can be replicated to form a wax tree (a cluster of wax patterns connected together).



Coating Application:
Multiple layers of ceramic or slurry coating are applied to the wax pattern, forming a sturdy outer shell. Each layer needs to be dried and hardened to ensure the shell’s strength and stability.

Wax Removal (De-waxing):
The coated wax pattern is placed in a high-temperature furnace where the wax melts and flows out, leaving an empty ceramic shell. This process is known as de-waxing.

Melting and Pouring:
The required metal is melted, usually under high vacuum or inert gas protection to ensure metal purity. The molten metal is then poured into the ceramic shell to form the cast part.

Cooling and Shell Removal:
After the metal cools and solidifies, the ceramic shell is broken to retrieve the cast part. Care must be taken to avoid damaging the cast part during this step.

Post-Processing:
The cast part undergoes cleaning, grinding, heat treatment, and other finishing processes to achieve the final dimensional accuracy and surface quality requirements.

Advantages

High Precision:
The Lost Wax Method can produce parts with very high precision, with dimensional tolerances as tight as ±0.05mm and surface roughness as low as Ra0.4μm.

Complex Shapes:
This technique can cast parts with complex geometries, such as internal cavities, deep holes, and thin-wall structures, which are challenging to achieve with other casting methods.

Versatile Materials:
The Lost Wax Method is suitable for a wide range of metal materials, including carbon steel, stainless steel, aluminum alloys, titanium alloys, and nickel-based alloys.

High Surface Quality:
The surface quality of the cast parts is excellent, often requiring minimal machining, which saves costs and time.

Production Efficiency:
Although the initial cost of pattern making is high, once the pattern is established, it enables large-scale production with high efficiency.

Applications

The Lost Wax Method is widely used across various high-end manufacturing sectors:

Aerospace: For manufacturing engine components, turbine blades, and structural parts.

Medical Devices: For producing high-precision surgical instruments and implants.

Automotive Manufacturing: For creating high-performance engine components.

Jewelry: For crafting intricate designs and high-value jewelry.

In summary, the Lost Wax Method Precision Casting Process, with its high precision, ability to create complex shapes, and excellent surface quality, is an indispensable technology in modern high-end manufacturing. With ongoing advancements in technology, the applications of Lost Wax Casting across various fields will continue to expand and deepen.
